Detectron2

Detectron2 is a platform for object detection, segmentation and other visual recognition tasks. Custom docker images for instance segmentation with additional tools are available from here:

https://github.com/waikato-datamining/pytorch/tree/master/detectron2

Prerequisites#

Make sure you have the directory structure created as outlined in the Prerequisites.

Data#

In this example, we will use the Oxford Pets dataset, which consists of 37 different categories of cats and dogs.

Download the dataset from the following URL into the data directory and extract it:

https://datasets.cms.waikato.ac.nz/ufdl/data/oxford-pets/oxford-pets-adams.zip

Rename the adams directory to pets-adams.

To speed up training, we only use two labels: cat:abyssinian and dog:yorkshire_terrier. The label filtering and splitting it into train, validation and test subsets is done using image-dataset-converter:

docker run --rm -u $(id -u):$(id -g) \
  -v `pwd`:/workspace \
  -t waikatodatamining/image-dataset-converter:0.0.4 \
  idc-convert \
    -l INFO \
    from-adams-od \
      -i "/workspace/data/pets-adams/*.report" \
    filter-labels \
      --labels cat:abyssinian dog:yorkshire_terrier \
    discard-negatives \
    coerce-mask \
    to-coco-od \
      -o /workspace/data/pets2-coco-split \
      --categories cat:abyssinian dog:yorkshire_terrier \
      --category_output_file labels.txt \
      --split_names train val test \
      --split_ratios 70 15 15

Training#

For training, we will use the following docker image:

waikatodatamining/detectron2:0.6

The training script is called d2_train_coco, for which we can invoke the help screen as follows:

docker run --rm -t waikatodatamining/detectron2:0.6 d2_train_coco --help

It is good practice creating a separate sub-directory for each training run, with a directory name that hints at what dataset and model were used. So for our first training run, which will use mainly default parameters, we will create the following directory in the output folder:

pets2-d2-maskrcnn

Before we can train, we will need to obtain and customize a config file. Within the container, you can find example configurations for various architectures in the following directory:

/opt/detectron2/configs/COCO-InstanceSegmentation

Using the d2_dump_config command, we can expand and dump one of these configurations for our own purposes:

docker run --rm \
  -u $(id -u):$(id -g) \
  --gpus=all \
  -v `pwd`:/workspace \
  -v `pwd`/cache:/.cache \
  -v `pwd`/cache/torch:/.cache/torch \
  -t waikatodatamining/detectron2:0.6 \
  d2_dump_config \
  --config_in /opt/detectron2/configs/COCO-InstanceSegmentation/mask_rcnn_R_50_FPN_1x.yaml \
  --num_classes 2 \
  --output_dir /workspace/output/pets2-d2-maskrcnn \
  --config_out /workspace/output/pets2-d2-maskrcnn/mask_rcnn_R_50_FPN_1x.yaml

Edit the mask_rcnn_R_50_FPN_1x.yaml file and change the following values (IMS_PER_BATCH is reduced to fit in your GPU's memory, the others to limit training time):

SOLVER:
  IMS_PER_BATCH: 4
  MAX_ITER: 15000
  STEPS:
  - 5000
  - 10000

Kick off the training with the following command:

docker run --rm \
  -u $(id -u):$(id -g) \
  --shm-size 8G \
  --gpus=all \
  -v `pwd`:/workspace \
  -v `pwd`/cache:/.cache \
  -v `pwd`/cache/torch:/.cache/torch \
  -v `pwd`/cache/iopath_cache:/tmp/iopath_cache \
  -t waikatodatamining/detectron2:0.6 \
  d2_train_coco \
  --config /workspace/output/pets2-d2-maskrcnn/mask_rcnn_R_50_FPN_1x.yaml \
  --train_annotations /workspace/data/pets2-coco-split/train/annotations.json \
  --train_images /workspace/data/pets2-coco-split/train/ \
  --test_annotations /workspace/data/pets2-coco-split/val/annotations.json \
  --test_images /workspace/data/pets2-coco-split/val/ \
  --labels /workspace/data/pets2-coco-split/train/labels.txt \
  --output_dir /workspace/output/pets2-d2-maskrcnn

Predicting#

Using the d2_predict script, we can batch-process images placed in the predictions/in directory as follows (e.g., from our test subset):

docker run --rm \
  -u $(id -u):$(id -g) \
  --shm-size 8G \
  --gpus=all \
  -v `pwd`:/workspace \
  -v `pwd`/cache:/.cache \
  -v `pwd`/cache/torch:/.cache/torch \
  -v `pwd`/cache/iopath_cache:/tmp/iopath_cache \
  -t waikatodatamining/detectron2:0.6 \
  d2_predict \
  --model /workspace/output/pets2-d2-maskrcnn/model_final.pth \
  --config /workspace/output/pets2-d2-maskrcnn/mask_rcnn_R_50_FPN_1x.yaml \
  --labels /workspace/data/pets2-coco-split/train/labels.txt \
  --prediction_in /workspace/predictions/in \
  --prediction_out /workspace/predictions/out

Notes

  • By default, the predictions get output in ROI CSV format. But you can also output them in the OPEX JSON format by adding --prediction_format opex --prediction_suffix .json to the command.

  • You can view the predictions with the ADAMS Preview browser:

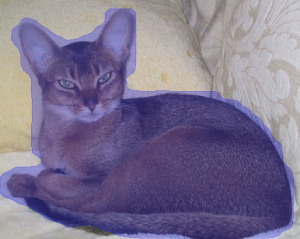

Example prediction

Screenshot Screenshot
