MMDetection (object detection)

MMDetection is a comprehensive and flexible framework for object detection that offers a wide variety of architectures. Custom docker images with additional tools are available from here:

https://github.com/waikato-datamining/mmdetection

Prerequisites#

Make sure you have the directory structure created as outlined in the Prerequisites.

Data#

In this example, we will use the American Sign Language Letters dataset, which consists of sets of images of hands, one per letter in the English alphabet (26 labels).

Download the dataset from the following URL into the data directory and extract it:

https://datasets.cms.waikato.ac.nz/ufdl/data/american-sign-language-letters/american-sign-language-letters-voc.zip

Once extracted, rename the voc directory to sign-voc.

Now we have to convert the format from VOC XML into MS COCO. We can do this by using the image-dataset-converter library. At the same time, we can split the dataset into train, validation and test subsets.

From within the applied_deep_learning directory, run the following command:

docker run --rm -u $(id -u):$(id -g) \
  -v `pwd`:/workspace \
  -t waikatodatamining/image-dataset-converter:0.0.4 \
  idc-convert \
    -l INFO \
    from-voc-od \
      -i "/workspace/data/sign-voc/*.xml" \
    to-coco-od \
      -o /workspace/data/sign-coco-split/ \
      --categories cat:abyssinian dog:yorkshire_terrier \
      --category_output_file labels.txt \
      --split_names train val test \
      --split_ratios 70 15 15

Training#

For training, we will use the following docker image:

waikatodatamining/mmdetection:2.27.0_cuda11.1

Inference is possible without a GPU as well (though much, much slower). For utilizing a CPU you can use the following docker image:

waikatodatamining/mmdetection:2.27.0_cpu

The training script is called mmdet_train, for which we can invoke the help screen as follows (unfortunately, we need to set the MMDET_CLASSES environment variable to avoid an exception):

docker run --rm \
  -e MMDET_CLASSES= \
  -t waikatodatamining/mmdetection:2.27.0_cuda11.1 \
  mmdet_train --help

It is good practice creating a separate sub-directory for each training run, with a directory name that hints at what dataset and model were used. So for our first training run, which will use mainly default parameters, we will create the following directory in the output folder:

sign-mmdet-fr50

Before we can train, we will need to obtain and customize a config file. Within the container, you can find example configurations for various architectures in the following directory:

/mmdetection/configs

Using the mmdet_config command, we can expand and dump one of these configurations for our own purposes:

docker run --rm \
  -u $(id -u):$(id -g) \
  --gpus=all \
  -v `pwd`:/workspace \
  -v `pwd`/cache:/.cache \
  -v `pwd`/cache/torch:/.cache/torch \
  -t waikatodatamining/mmdetection:2.27.0_cuda11.1 \
  mmdet_config \
  /mmdetection/configs/faster_rcnn/faster_rcnn_r50_fpn_1x_coco.py \
  > output/sign-mmdet-fr50/faster_rcnn_r50_fpn_1x_coco.py

Open the faster_rcnn_r50_fpn_1x_coco.py file in a text editor and perform the following operations:

  • remove any lines before model = dict(
  • change num_classes to 26
  • change dataset_type to Dataset and any occurrences of type in the train, test, val sections of the data dictionary
  • change data_root occurrences to /workspace/data/sign-coco-split (the directory above the train and val directories)
  • change img_prefix occurrences to img_prefix=data_root+'/DIR', with DIR being the appropriate train, val or test
  • change ann_file occurrences to ann_file=data_root+'/DIR/annotations.json', with DIR being the appropriate train, val or test
  • change max_epochs in runner to an appropriate value, e.g., 50
  • change interval in checkpoint_config to a higher value, e.g., 10

Kick off the training with the following command:

docker run --rm \
  -u $(id -u):$(id -g) \
  --shm-size 8G \
  --gpus=all \
  -v `pwd`:/workspace \
  -v `pwd`/cache:/.cache \
  -v `pwd`/cache/torch:/.cache/torch \
  -e MMDET_CLASSES=/workspace/data/sign-coco-split/train/labels.txt \
  -t waikatodatamining/mmdetection:2.27.0_cuda11.1 \
  mmdet_train \
  /workspace/output/sign-mmdet-fr50/faster_rcnn_r50_fpn_1x_coco.py \
  --work-dir /workspace/output/sign-mmdet-fr50/runs

Predicting#

Using the mmdet_predict script, we can batch-process images placed in the predictions/in directory as follows (e.g., from our test subset):

docker run --rm \
  -u $(id -u):$(id -g) \
  --shm-size 8G \
  --gpus=all \
  -v `pwd`:/workspace \
  -v `pwd`/cache:/.cache \
  -v `pwd`/cache/torch:/.cache/torch \
  -e MMDET_CLASSES=/workspace/data/sign-coco-split/train/labels.txt \
  -t waikatodatamining/mmdetection:2.27.0_cuda11.1 \
  mmdet_predict \
  --checkpoint /workspace/output/sign-mmdet-fr50/runs/latest.pth \
  --config /workspace/output/sign-mmdet-fr50/faster_rcnn_r50_fpn_1x_coco.py \
  --prediction_in /workspace/predictions/in \
  --prediction_out /workspace/predictions/out

Notes

  • By default, the predictions get output in ROI CSV format. But you can also output them in the OPEX JSON format by adding --prediction_format opex --prediction_suffix .json to the command.

  • You can view the predictions with the ADAMS Preview browser:

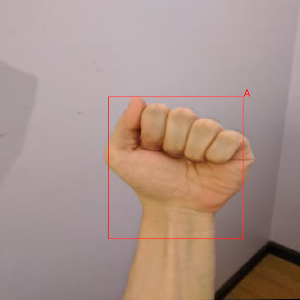

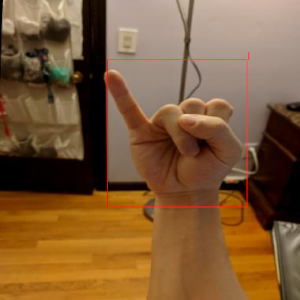

Example prediction

Screenshot

Screenshot
